Loft Conversion Ceiling Height: Is Your Loft High Enough?

Ridge Height, Usable Floor Area, and Eaves Height: What the Terms Mean

Loft headroom comes down to three distinct measurements: ridge height, usable floor area, and eaves height. Conflating them is the most common source of confusion. Get clear on all three and the rest of this guide falls into place.

Ridge height is the vertical distance from your loft floor (the top of the ceiling joists) to the highest point inside the roof. That apex is where the two slopes meet. This is the figure that determines overall feasibility, so it is what you measure first when sizing up your loft.

Usable floor area is the floor space where you can actually stand upright, conventionally defined as the area where headroom exceeds 1.5m. A loft may have a generous ridge height but a tiny usable floor area if the roof pitch is shallow. That happens because the slopes close in quickly on either side.

Eaves height is the point where the sloping roof meets the wall. In a standard Victorian or Edwardian loft, this is typically only 0.5–0.9m above the floor. This is where you store bags and boxes, not where you live. Most of the usable space in a converted loft sits in the central zone between the eaves, and its width is governed entirely by pitch.

The difference matters in practice. A loft with a 2.4m ridge height and a 30° pitch may give you far less usable room than one with a 2.2m ridge and a 45° pitch. Both cross the 2.2m threshold, yet only one delivers a genuinely comfortable room. This is exactly why a proper measured survey beats a tape measure from below every time.

How to Measure Your Loft Headroom

You can take a useful initial reading yourself with nothing more than a tape measure. Measure vertically from the loft floor to the underside of the ridge board at the apex. Here is how to do it through a standard loft hatch.

1. Open the loft hatch and, if safe to do so, stand on the ladder to look inside.
2. Hold a tape measure vertically from the top of the ceiling joist (the existing loft floor) up to the underside of the ridge board at the apex of the roof. This is your ridge height.
3. Also measure from the apex down to the collar ties if your roof has them — horizontal timber members that connect the two rafters part-way up. These can significantly reduce effective headroom even when the true ridge is high.
4. Note whether the floor is boarded or bare joists. The finished floor build-up after conversion will typically add 100–150mm, slightly reducing your final headroom figure.

Your reading points you straight to the likely answer. If your ridge height is 2.4m or more, a Velux conversion is almost certainly viable, and the conversation moves on to roof pitch and floor area. If it is under 2.0m, a Velux rarely works without significant structural changes, so a dormer or mansard is the more practical route. If you measure between 2.0m and 2.4m, the result is genuinely borderline, and a specialist survey will give you a definitive answer.

Minimum Headroom Requirements: The Numbers That Matter

The working minimum for a habitable loft room is 2.2m of headroom at the ridge. Building Regulations set no absolute statutory minimum for room height in England and Wales, but in practice building control surveyors and mortgage lenders apply 2.2m as the threshold. A room below this height is hard to sell as a bedroom, and a valuer may class it only as storage or a study.

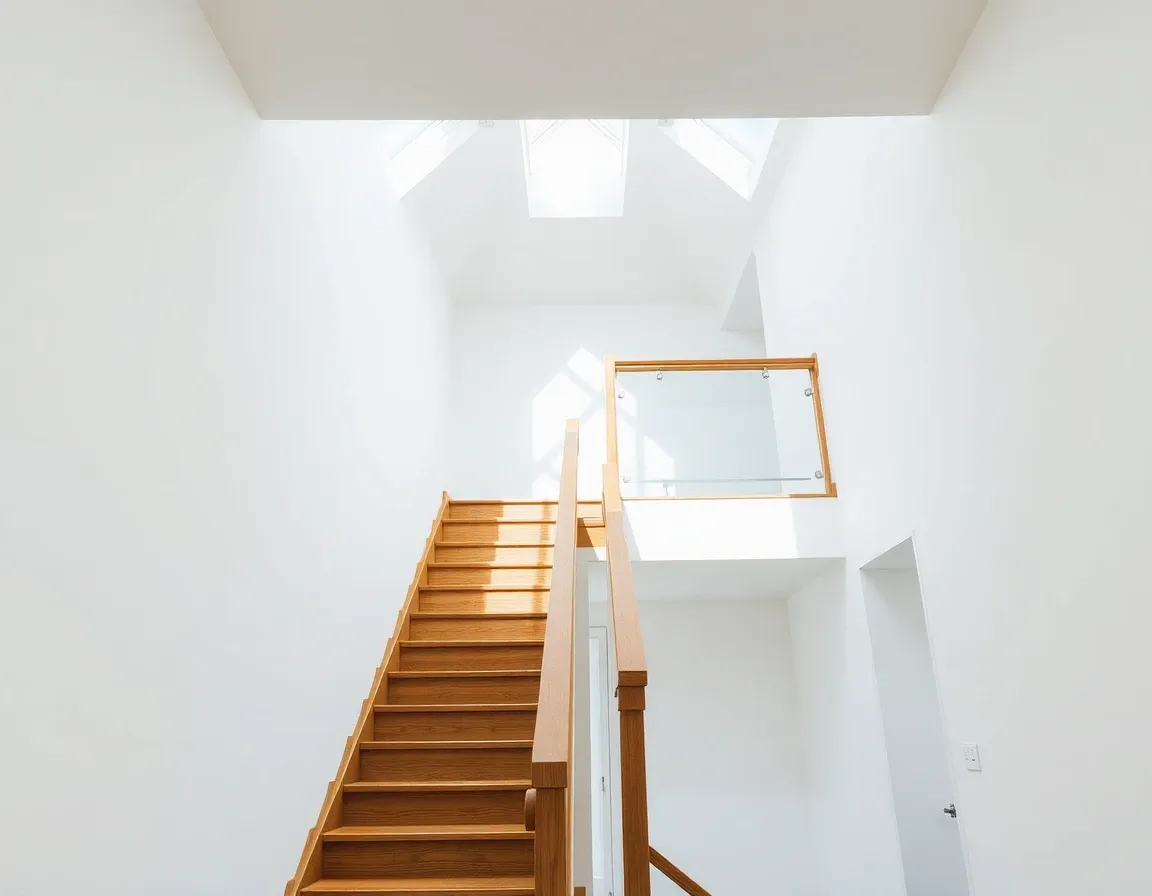

The staircase rules, by contrast, are explicit. Part K of the Building Regulations sets two firm figures.

• 2.0m minimum headroom on the main staircase run, measured vertically from the pitch line (the nosing of each tread).
• 1.9m minimum at the sides of the stair and at the bottom two steps where the staircase meets the landing below.

These staircase figures sit apart from the room headroom, and they catch a lot of projects out. A loft that clears 2.2m at the ridge may still struggle to fit a compliant staircase if floor space is tight. For this reason, the staircase position is one of the first things a structural designer pins down when drawing up a scheme.

Access rules also have teeth. If the only way into the loft is a hatch and a ladder, the space cannot legally be used as a habitable room. Loft ladders and space-saver (alternating tread) staircases are permitted only where a conventional stair genuinely will not fit, and even then building control must approve the design.

What to Do if Your Loft Is Too Low

A low ridge height is not the end of the road. It simply changes the type of conversion that makes sense. The good news is that three proven options can build headroom into a loft that does not have enough of it to start with.

First, a dormer loft conversion extends the rear slope of the roof upward and outward, creating a vertical-walled box at the back of the loft. This is the most common solution for marginal-headroom properties. The rear portion gains full standing height, typically 2.3–2.4m, and the total usable floor area grows significantly. On most terraced and semi-detached homes, a rear dormer falls under Permitted Development and needs no planning permission.

A mansard conversion goes further still. It replaces the entire rear roof slope with a near-vertical face, typically 72°, giving maximum headroom across the full floor area. Mansards are common in London's terraced streets and do require planning permission, but the resulting room is as full-height as any floor in the house. See our mansard loft conversion service for more detail on what is involved.

Finally, if your home has a hipped roof and low headroom at the sides, a hip-to-gable conversion replaces the sloping hip with a vertical gable wall. As a result, both height and usable floor area increase across the full width of the loft. It is often combined with a rear dormer to create the maximum possible space.

How Roof Pitch Affects What You Can Do

Roof pitch decides how much of your ridge height you can actually use. A steep pitch of 45° or more builds headroom quickly as you move away from the eaves. The slopes rise sharply, leaving a wide central zone at full standing height. A shallow pitch of around 30° may have the same ridge height, yet the usable floor area shrinks because the slopes are nearly flat and close in fast.

London's Victorian and Edwardian terraces, built between roughly 1870 and 1920, typically have pitches of 45–50°. This is one reason these properties suit loft conversions so well: the geometry works in your favour. Newer houses from the 1970s onwards often have shallower pitches of 30–35°. Those produce adequate ridge heights but cramped usable floor areas, so a dormer or mansard is almost always the right call.

Ridge height and pitch together determine usable floor area. A specialist can calculate it from measurements, but the most reliable method is a physical survey. The surveyor walks the loft and marks out where standing height exceeds 1.5m, and that marked zone is what you are actually converting.

The Free Survey: Where the Real Answer Comes From

A tape measure through the hatch is a useful starting point, but a specialist survey gives you the definitive picture. As part of our free, no-obligation survey, a surveyor visits your property and takes full measurements: ridge height, eaves height, pitch, collar tie positions, and floor joist span. From those, we tell you precisely which conversion types are feasible for your loft and roughly what each would cost.

The survey settles the questions a tape measure cannot. If your loft sits on the margin between a Velux conversion and a dormer, it will resolve which one fits. If you suspect your headroom is too low but are not certain, it confirms what is actually possible and gives you a realistic picture of the space you would gain. There is no commitment required and no cost for the visit.
